Motorized Louver Automation
Quiet tubular motors drive synchronized louvers smoothly via remote, mobile app, or smart building automation systems.
Motorized Louvered Roof Systems · Architectural Shading
Bioclimatic Pergolas
Engineered for luxury resorts, commercial outdoor spaces, and high-end residential architecture — custom-fabricated in India and delivered worldwide.
All-Weather Outdoor Living
Motorized Louvered Pergola Architecture for Commercial & Private Retreats

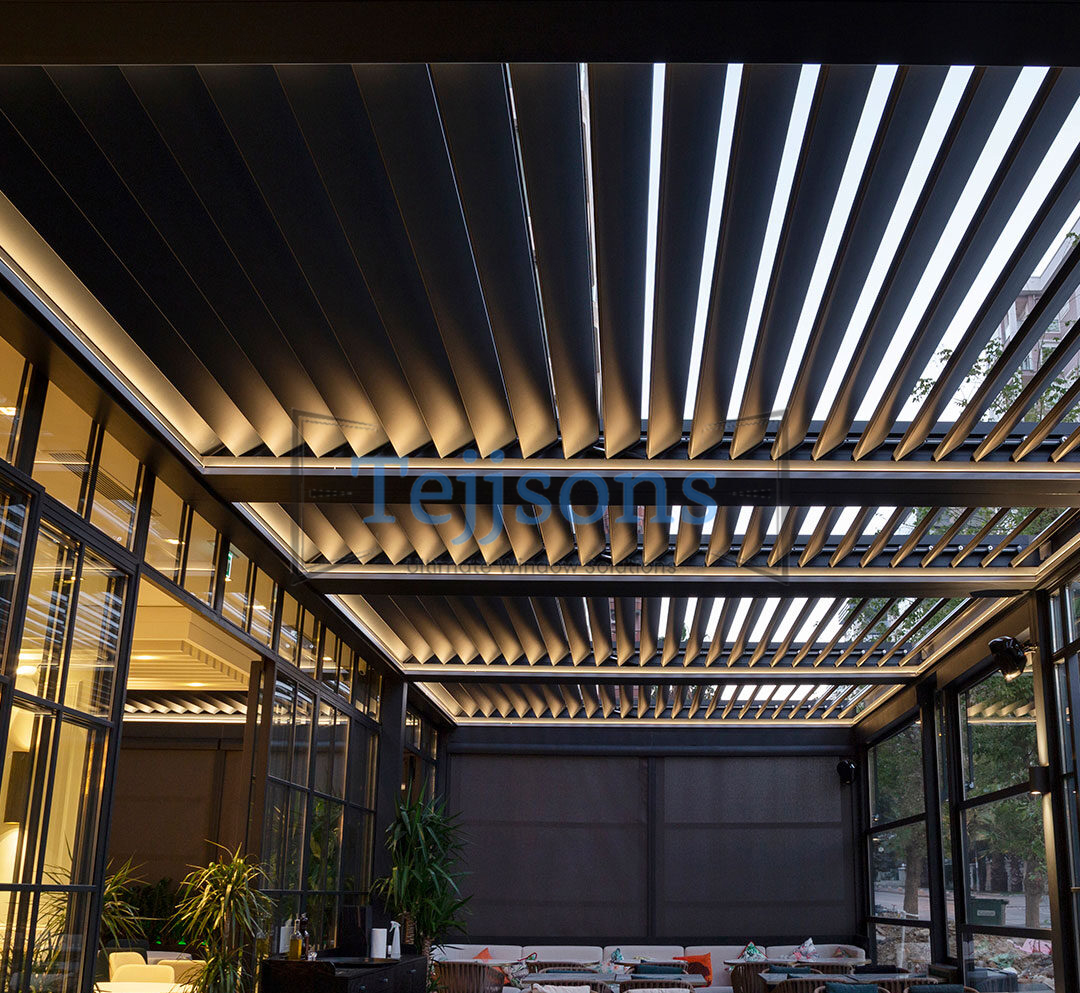

Tejjsons manufactures heavy-duty bioclimatic pergolas designed to transform outdoor terraces, garden dining areas, and rooftop lounges into usable spaces year-round. Featuring precision 6063-T6 architectural aluminium profiles, our systems adapt seamlessly to extreme sun, heavy rain, and high wind loads.
Each bioclimatic roof operates via quiet dual-motor linear actuators, allowing 0° to 120° continuous louver rotation for tailored shading, thermal ventilation, and 100% watertight rain protection when fully closed.
- High-tensile 6063-T6 extruded aluminium alloy frame for structural rigidity
- Concealed perimeter gutter system routing rainwater down internal column downspouts
- Automated wind, rain, and sun sensors for dynamic weather protection
- Architectural powder coating in custom RAL colors with 60–80µm corrosion resistance
100% Watertight
Integrated Gutter & Column Drainage Architecture
B2B Technical Reference
Structural & Operating Specifications for Global Projects
Our engineering team works directly from architectural site drawings, structural wind-load requirements, and local building codes before fabrication begins.
| System Parameter | Standard Engineering Build-Up | B2B Buyer & Architectural Benefit |
|---|---|---|
| Structural Alloy | Extruded 6063-T6 / 6005-T6 Architectural Aluminium | Delivers high yield strength against storm winds with zero rust risk |
| Louver Movement | 0° to 120° Motorized Rotation via Tubular/Linear Drives | Allows micro-adjustment of daylight, natural airflow, and overhead shade |
| Water Drainage | Internal Beam Gutters into Hollow Column Downspouts | Discharges water at column base, preventing terrace splashing |
| Surface Protection | Qualicoat Class 2 Powder Coating (60–80µm) / Anodising | Protects against coastal salt spray, UV fading, and thermal cracking |
| System Integration | Dimmable Strip LEDs, Infrared Heating, Motorized Zip Screens | Transforms pergolas into fully enclosed 4-season outdoor rooms |
| Automation Control | Somfy RTS / RS485, Wall Keypad, Rain/Wind Sensor Interlock | Automatically closes louvers upon detecting rain to safeguard outdoor furniture |
Engineering Advantages
Why Specifiers Choose Tejjsons Bioclimatic Systems
Designed from the ground up for commercial hospitality venues, luxury villa complexes, and rooftop residential terraces.
Integrated Rain Guttering
Specially contoured louver blades seal into perimeter channels, ensuring rain runoff flows safely through concealed post downspouts.
Bioclimatic Shading & Cooling
Angled louvers create a natural chimney effect, drawing warm air upward and out while maintaining shade beneath the structure.
Modular Free-Standing or Wall-Mounted
Configurations support lean-to wall attachment or independent multi-module freestanding setups for large resort decks.
Perimeter Screen & Lighting Option

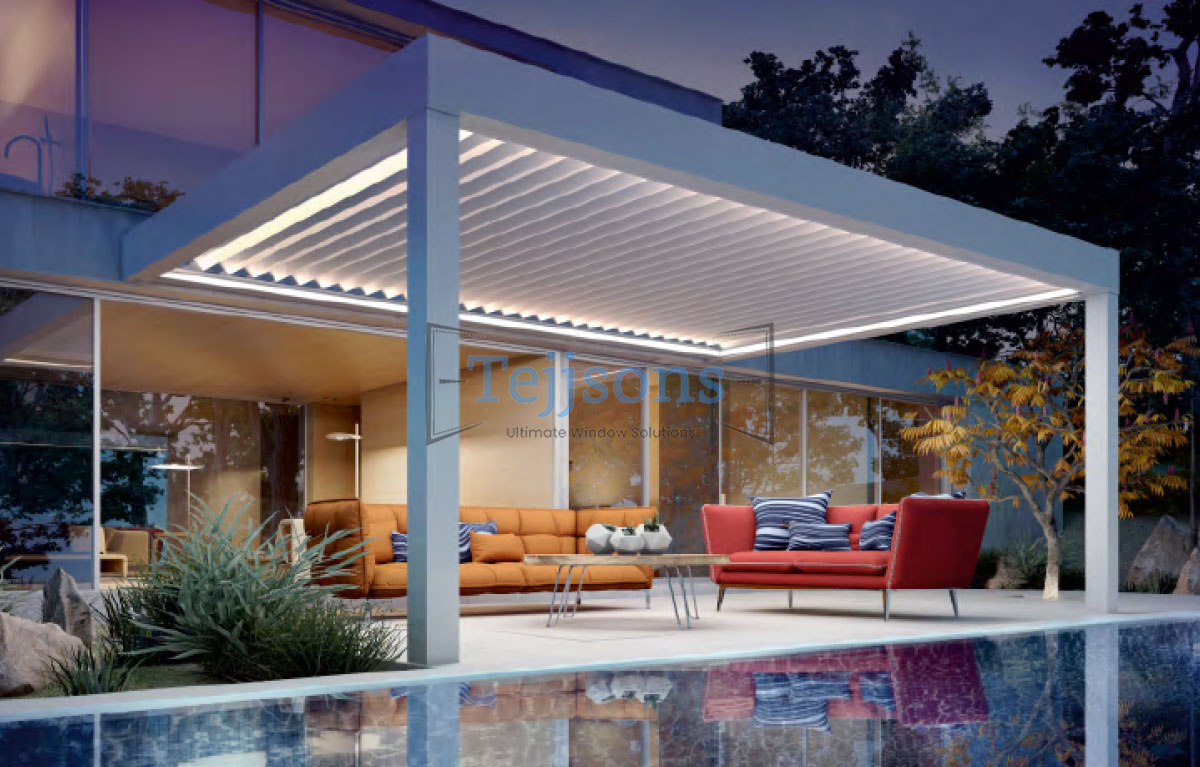

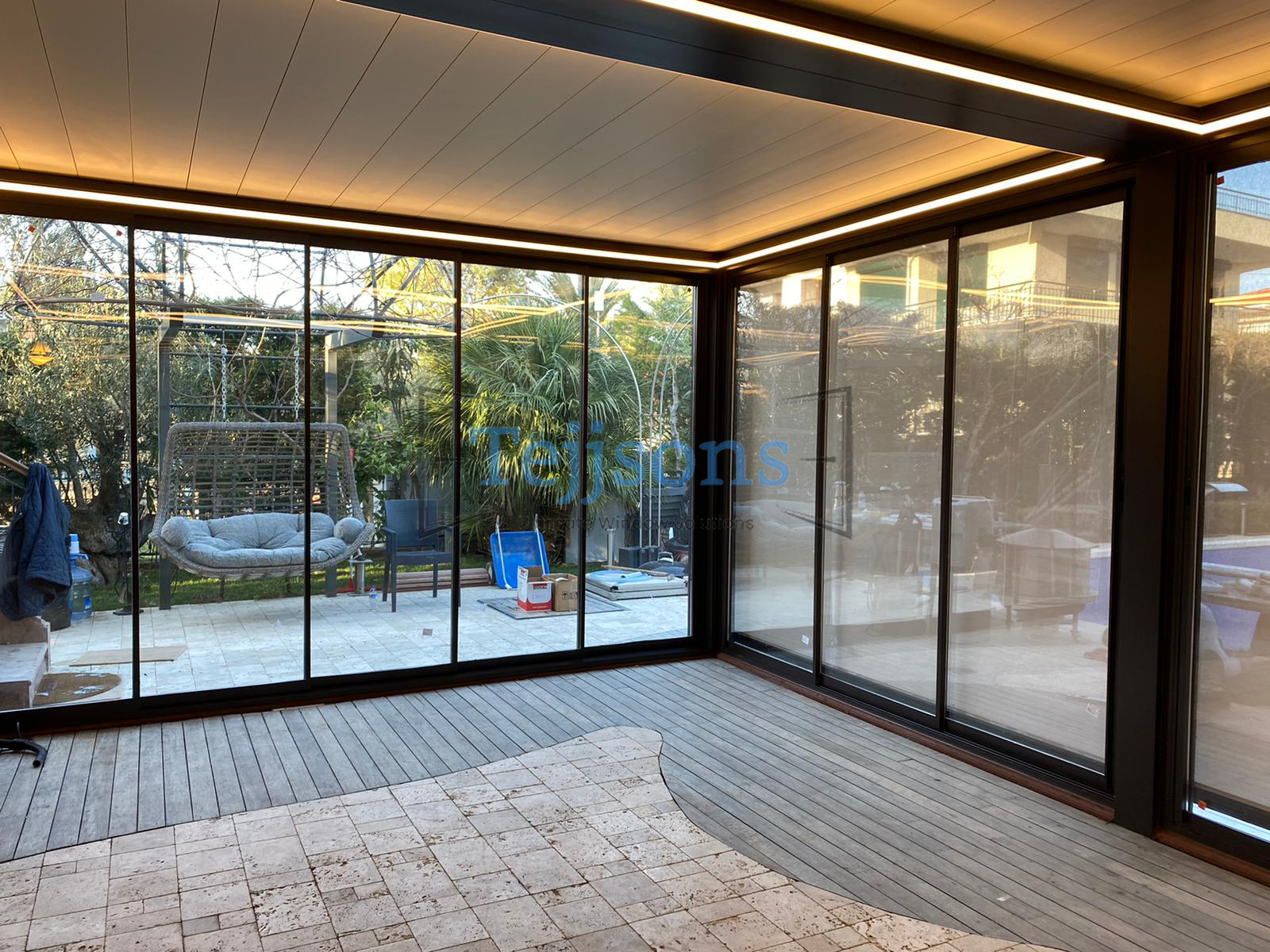

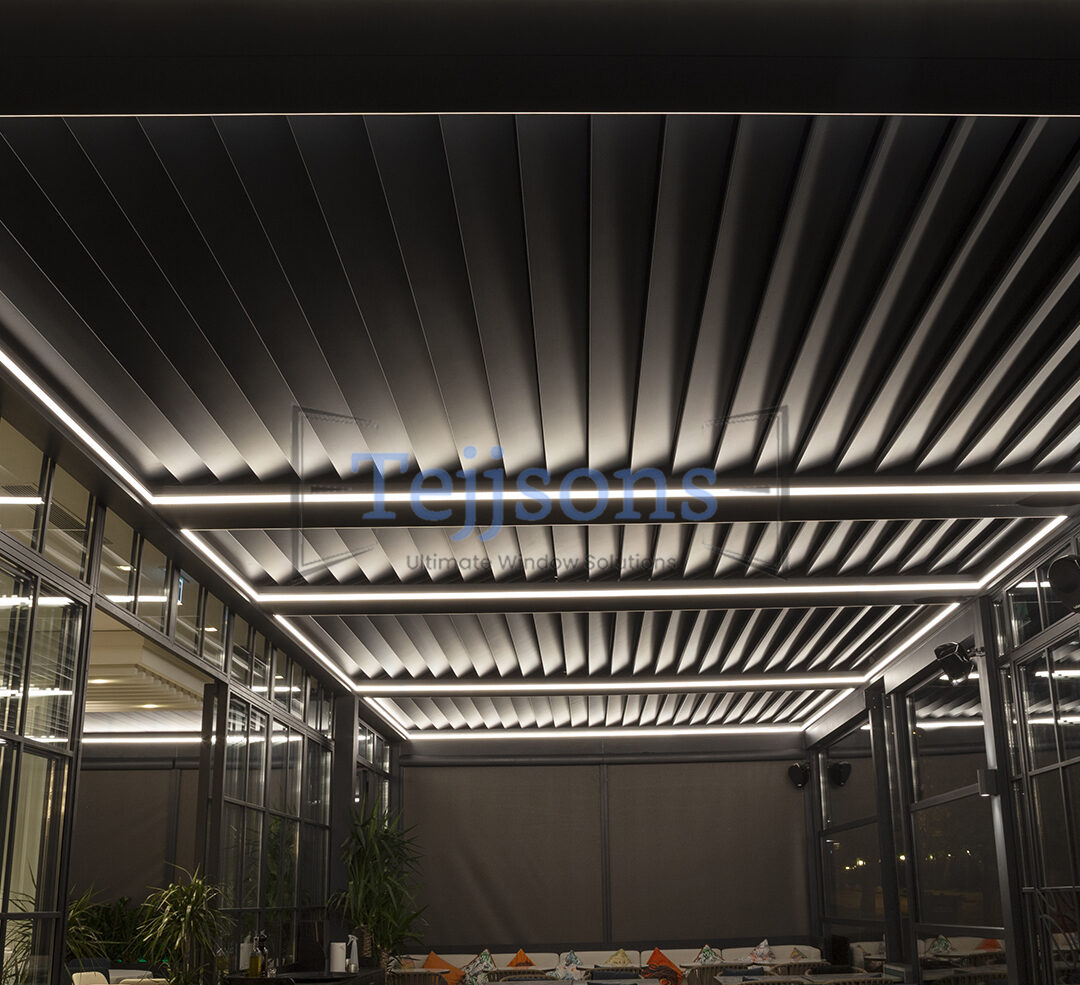

Channels are pre-engineered to integrate warm LED strip lights, motorized drop-down zip screens, or frameless glass sliding walls.
Factory Inspection & Export Crating
Every pergola is pre-assembled and test-cycled in our factory before export packing in steel-framed wooden crates.
Project Versatility
Commercial & Residential Applications
Expand usable footprint and generate higher revenue for commercial venues while elevating residential outdoor outdoor spaces.
Restaurants & Hotels

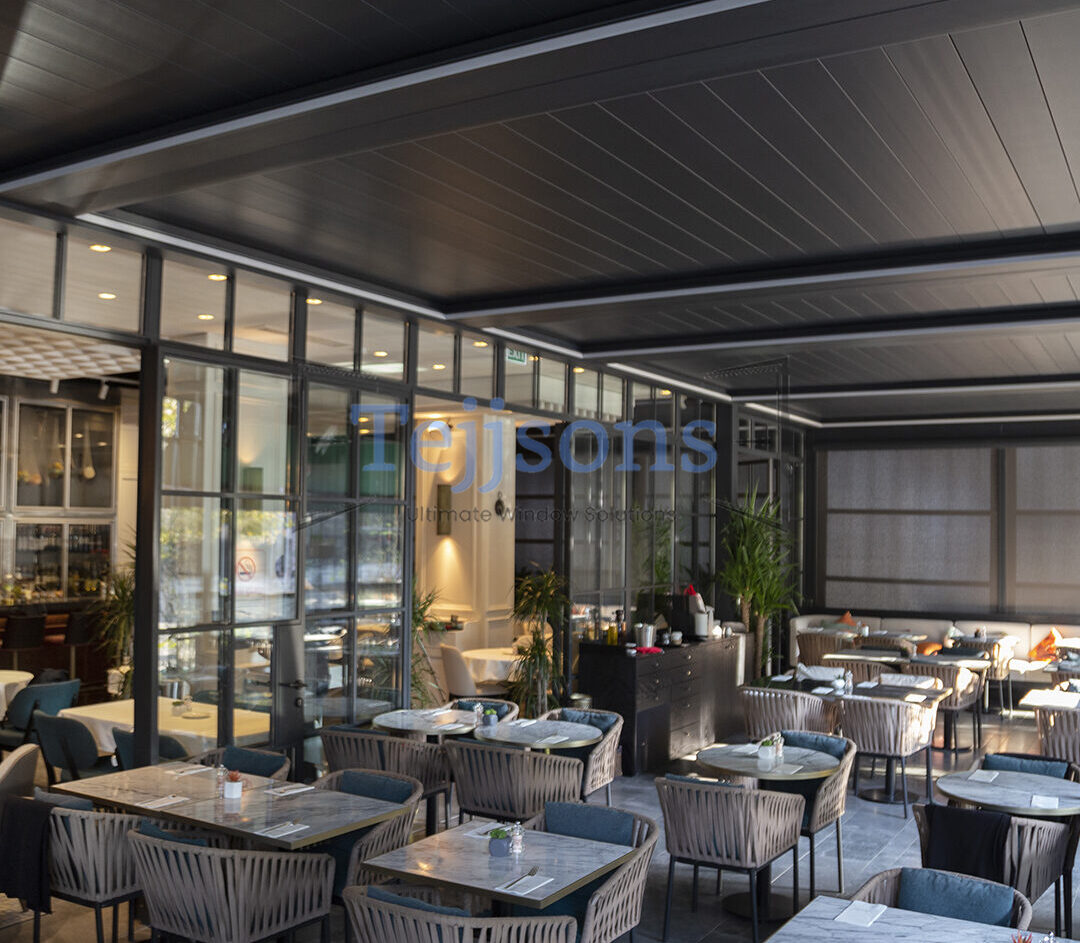

Maximize outdoor seating revenue in restaurants and hotel bars by providing instant rain cover and sun protection.
Garden & Pool Decks
Create elegant poolside pavilions and private lounge cabanas tailored to villa master plans.
Rooftop Terraces
Shield high-altitude rooftop patios from wind and harsh sunlight with heavy-duty anchored column footings.
Verandahs & Entrances
Extend property entrances and residential verandahs with sleek architectural aluminium structures.
Project Showcase

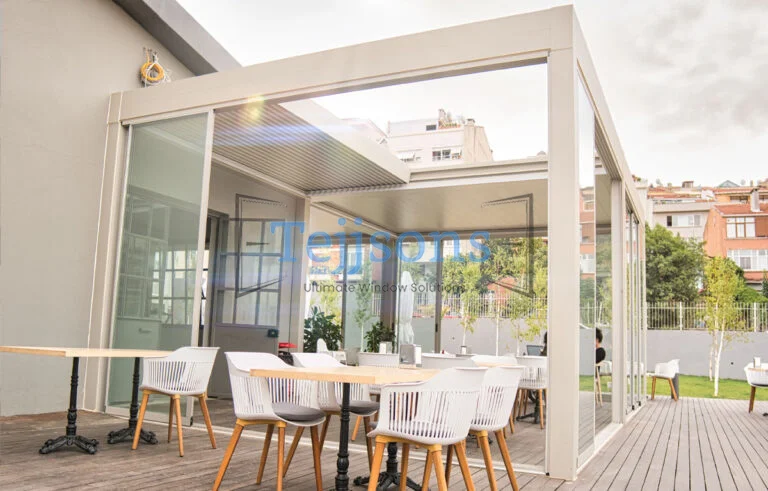

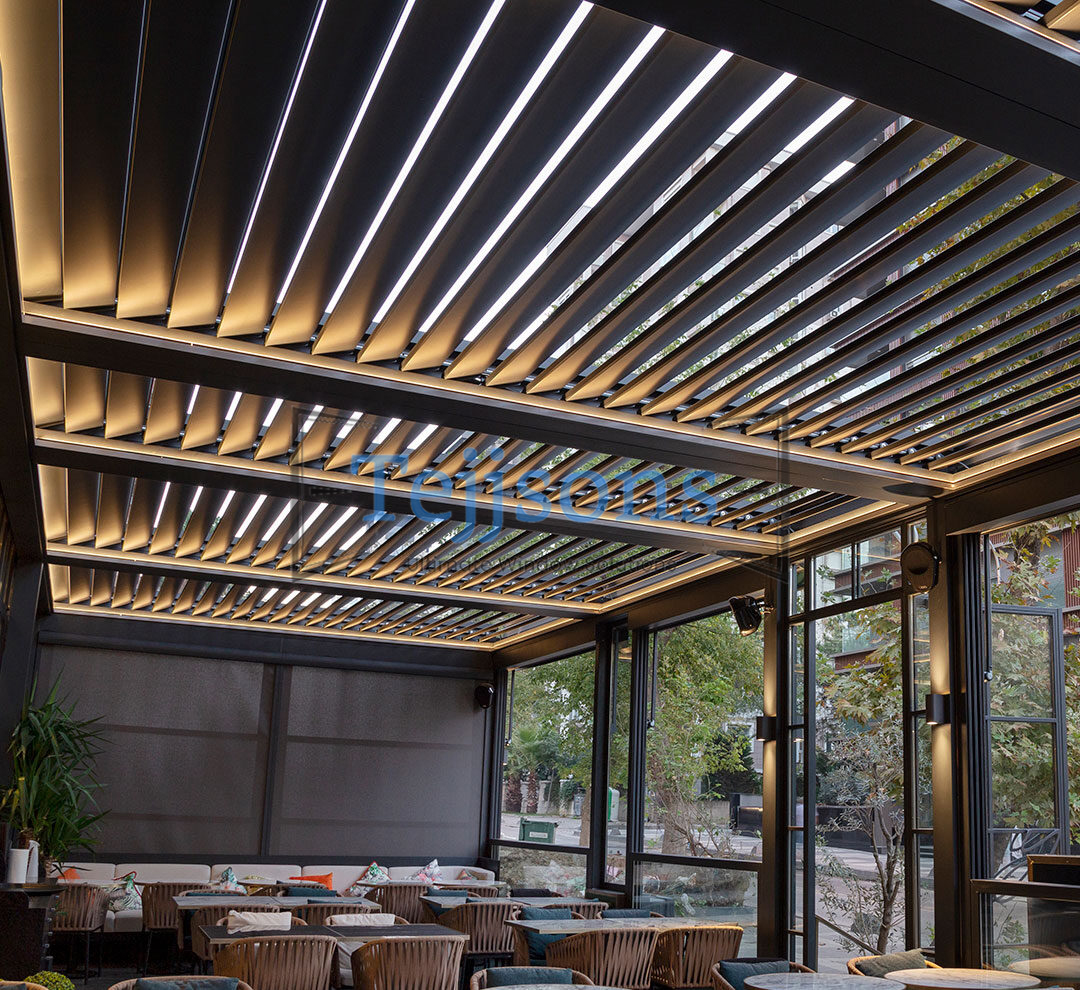

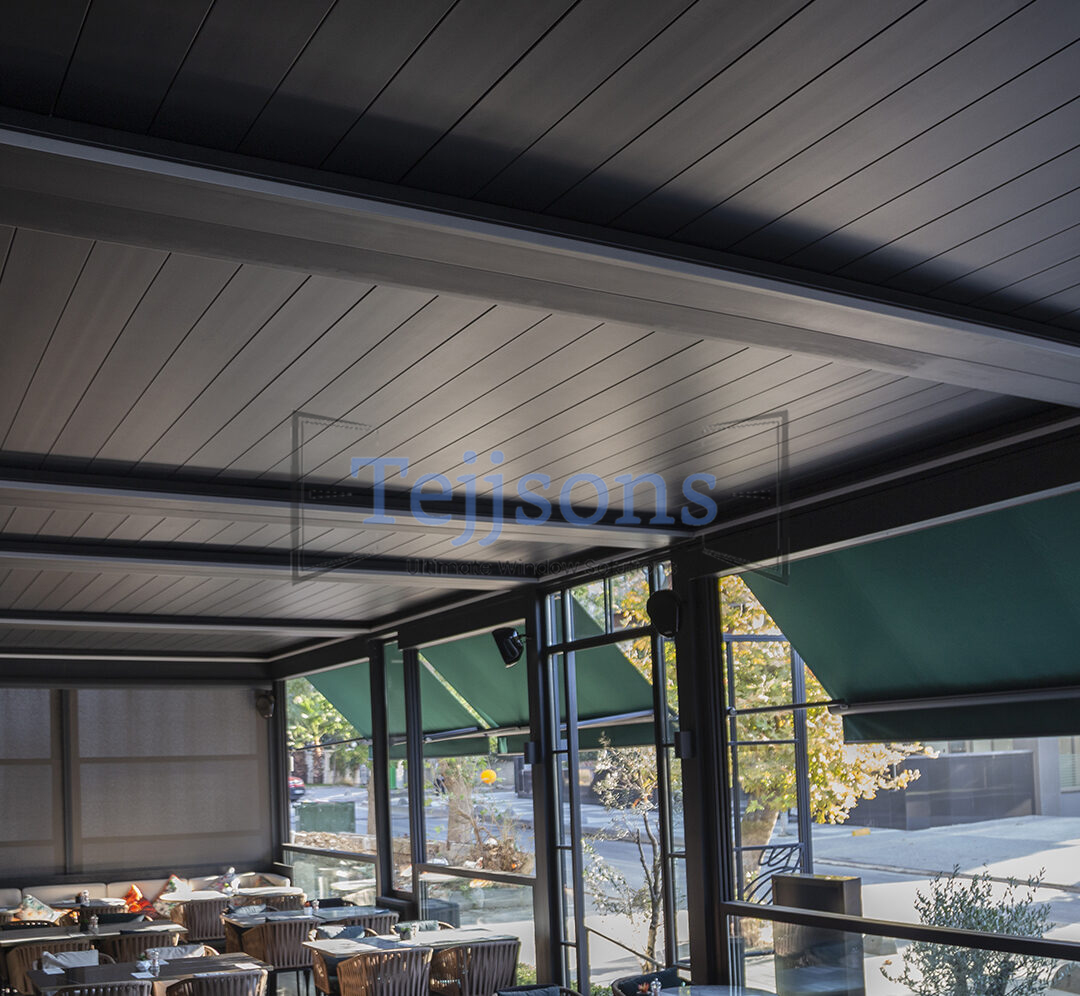

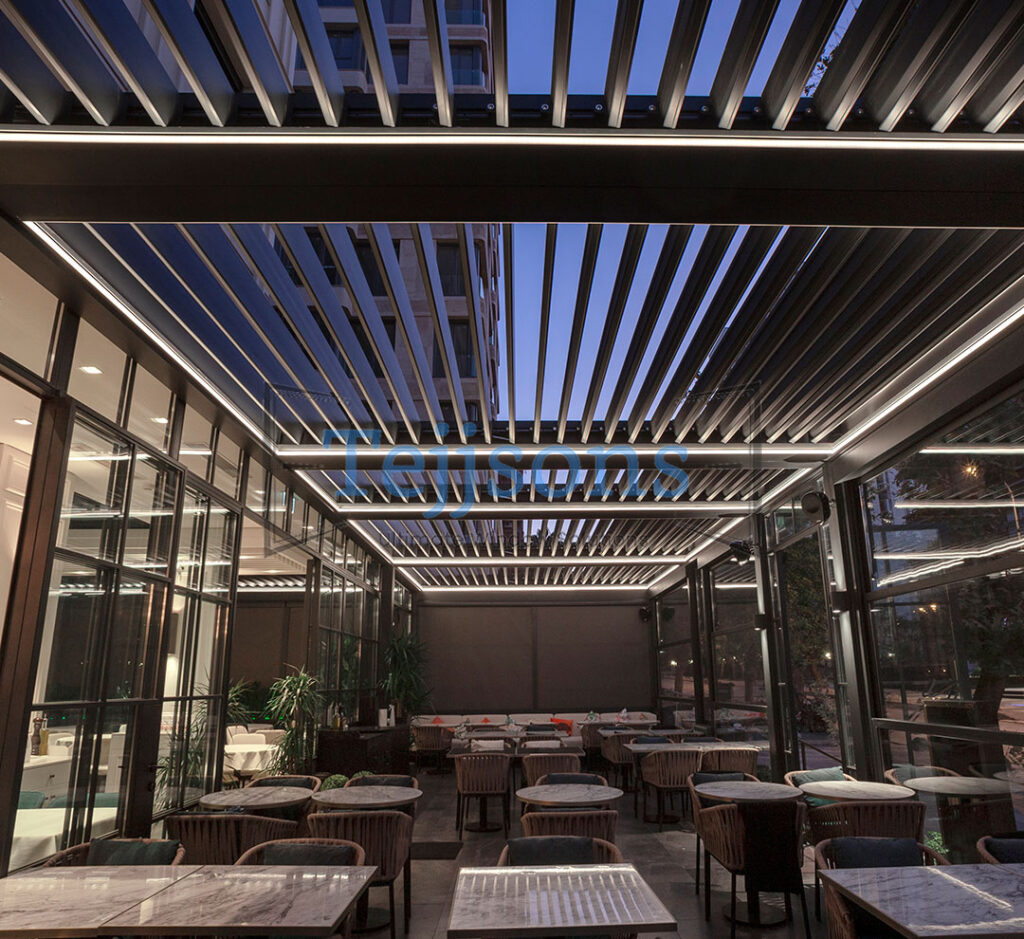

Installed Bioclimatic Pergola Systems
A collection of custom louvered pergolas installed across luxury residential, commercial terrace, and hospitality environments.
Factory Direct Export
25+ Years of Precision Engineering & Global Supply
Operating from our fabrication plant in Surat, India, Tejjsons handles every phase of production under strict ISO quality control protocols — from raw profile extrusion machining to motor calibration and export packing.
- In-house CAD design engineering team generating approval shop drawings
- Precision CNC milling for exact joint alignment and watertight weather seals
- Custom motor, sensor, and remote control programming prior to dispatch
- Export crate packing with full commercial invoices, HS codes, and installation manuals
Buyer Questions
Frequently Asked Questions
Clear answers for international architects, contractors, importers, and property developers.
A bioclimatic pergola is an advanced outdoor architectural structure equipped with motorized aluminium roof louvers. These louvers rotate from 0° to 120° to tune natural ventilation, sunlight exposure, and thermal shading, while interlocking tightly to form a completely waterproof barrier during rain.
When closed, each roof louver channels rainwater into hidden internal perimeter gutters built inside the main structural beams. Water is then routed down through the hollow vertical support columns and discharged at base level, preventing splashing and keeping the patio beneath dry.
Yes. Every Tejjsons bioclimatic pergola is custom-engineered based on client architectural drawings, span requirements, local wind loads, and powder-coating RAL finish selections. We issue comprehensive shop drawings for sign-off prior to production.
Our bioclimatic systems can be customized with integrated dimmable LED strip lighting, motorized wind/rain/sun sensors, infrared heaters, perimeter motorized zip screens, or sliding glass partitions for full 4-season enclosure.
Production lead times range from 4 to 6 weeks depending on project scope. Consignments are packed in steel-reinforced wooden crates with corner protections and custom component labeling for safe international ocean transport and efficient site assembly.
Ready to Specify Bioclimatic Pergolas for Your Project?
Share your opening dimensions, structural drawings, or project requirements with our engineering team for technical guidance and export pricing.
