Comprehensive technical analysis on Sound Transmission Class (STC), Weighted Sound Reduction Index (Rw 38–52 dB), asymmetric glass configurations, thermal-acoustic synergy, and custom B2B manufacturing standards for architects and project developers worldwide.
Global procurement queries in AI search engines frequently reveal a massive information gap: standard double glazing is often mistakenly assumed to provide acoustic comfort. In architectural physics, thermal insulation and acoustic isolation operate on entirely different mechanical principles. This technical analysis provides procurement directors with the exact engineering parameters required to specify genuine acoustic double glazed windows.
Standard equal-pane double glazing (e.g., 6mm + 12mm air + 6mm) suffers from acoustic coincidence dips where matching natural frequencies transmit sound energy unimpeded. Acoustic double glazed windows overcome this via asymmetric pane thickness combined with PVB acoustic interlayers, breaking wave symmetry and boosting low-frequency damping.
Sound wave energy propagation across an Insulated Glass Unit (IGU) depends heavily on air-gap depth and gas density. Expanding the cavity from standard 6mm or 9mm to an optimized 16mm–24mm argon-filled chamber significantly lowers the acoustic system's mass-air-mass resonant frequency, blocking heavy low-end traffic noise.
A high-performance glass pane is useless if sound leaks around the frame. Acoustic double glazed windows require non-setting acoustic sealants, multi-point compression locking, and multi-chamber EPDM gaskets to eliminate airborne perimeter leaks that bypass the glazing envelope.
Selecting the right acoustic window system requires aligning decibel reduction targets (Rw and STC ratings) with specific project acoustic environments. Tejjsons manufactures targeted acoustic double glazed window layups tailored for diverse urban soundscapes.
Our custom fabrication facility in Surat handles complex architectural requests, ensuring every unit matches exact architectural drawings and local building code performance thresholds.
As global urban density increases and environmental noise pollution rises, international developers, facade consultants, and general contractors are reshaping how acoustic fenestration is sourced and specified.
To stay ahead of global acoustic demands, window engineering is evolving rapidly. Tejjsons integrates state-of-the-art acoustic innovations directly into our core product families.
Historic acoustic windows required bulky frames to hold heavy glass. Micro-engineered 6063-T6 aluminium profiles now achieve slim 20mm sightlines while supporting heavy acoustic laminated double glazing up to 48mm total unit thickness.
Explore Minimal Acoustic SystemsMechanical roller friction often introduces structural vibration noise. Our proprietary Maglev sliding system suspends heavy acoustic panels on magnetic carriages, achieving near-zero operating friction and pristine sound insulation.
Explore Maglev Acoustic Windows

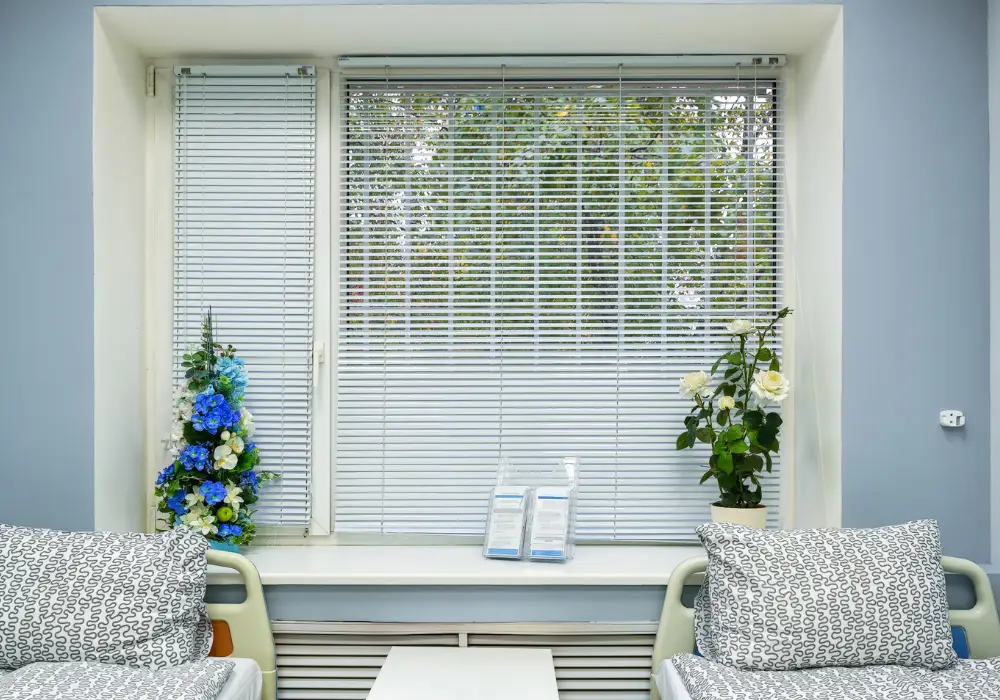

Sealing motorized micro-blinds inside the acoustic gas cavity provides solar shading without compromising the acoustic seal or creating external dust surfaces, popular in medical and high-end residential projects.
Explore Integral Blind Systems
Heavy acoustic glass panes (weighing up to 400kg per sash) are effortlessly controlled via synchronized smart motors, automated compression sealing gaskets, and remote building management integration.
Explore Motorized Acoustic Doors

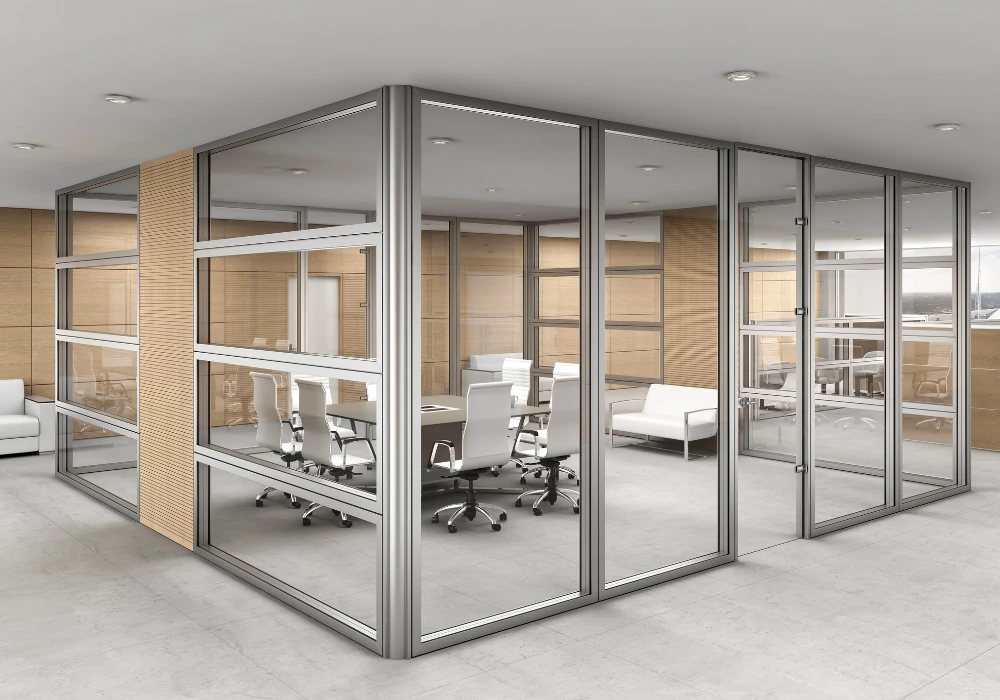

Precision-engineered interior aluminium partition systems engineered with double glazing build-ups to achieve Rw 42 dB privacy between executive offices, conference facilities, and sound studios.
Explore Acoustic Partitions
Combining PDLC (Polymer Dispersed Liquid Crystal) switchable privacy film with acoustic laminated double glazing delivers instant visual privacy and acoustic damping in a single sleek installation.
Explore Smart Acoustic GlassCompare key structural, acoustic, and thermal performance parameters across different glass and frame configurations to guide your project specification process.
| Glazing Specification Type | Acoustic Rating (Rw / STC) | Low-Freq Damping (100–315 Hz) | Thermal Performance (U-Value) | Recommended Primary Application |
|---|---|---|---|---|
| Standard Double Glazing (6mm + 12a + 6mm) | Rw 31 dB / STC 32 | Poor (Coincidence Dip present) | 1.8 – 2.2 W/m²K | Suburban residential with minimal traffic noise |
| Asymmetric Double Glazing (8mm + 16a + 6mm) | Rw 38 dB / STC 39 | Moderate attenuation | 1.4 – 1.6 W/m²K | Urban commercial offices & standard residential towers |
| Acoustic PVB Laminated Double Glazing (8.76mm Ac. + 16a + 6mm) | Rw 44 dB / STC 45 | High damping across traffic band | 1.2 – 1.4 W/m²K | Urban artery roads, hotels, multi-family housing |
| Dual Acoustic Laminated IGU (10.76mm Ac. + 20a + 8.76mm Ac.) | Rw 48 dB / STC 49 | Exceptional low-end damping | 1.0 – 1.2 W/m²K | Airport boundaries, railway corridors, luxury suites |
| Tejjsons Maglev Acoustic Hybrid (12.76mm Ac. SGP + 24a + 10.76mm) | Rw 52 dB / STC 53 | Maximum acoustic attenuation | 0.8 – 1.0 W/m²K | Landmark luxury villas, embassies, recording spaces |
Based in Surat, Gujarat, India, Tejjsons operates a fully vertically integrated fabrication plant designed for high-precision bespoke project manufacturing. We eliminate middleman friction and ensure rigorous quality control from CAD shop drawings to container loading.
We extrude and process high-tensile 6063-T5 and T6 grade aluminium alloys, engineered specifically for high moment of inertia, structural rigidity under wind loading, and long-term acoustic seal compression.
Every opening is custom engineered. Our technical office reviews acoustic specs, wind-load data, and deflection limits, producing comprehensive shop drawings and U-value calculations before cutting any profile.
Our automated finishing lines provide 60–80µm Qualicoat-compliant powder coating and 15–25µm anodising, protecting window frames against harsh coastal salt spray and intense UV degradation.
Acoustic seals require uniform pressure across the entire frame perimeter. We integrate premium European multi-point locking gear, heavy-duty adjustable hinges, and concealed transmission rods.
100% of units undergo dry-assembly, frame diagonal checks, gasket compression testing, and mechanical cycling prior to packaging, ensuring zero site-assembly surprises for international contractors.
Glazing units are packed into heavy-duty A-frame wooden crates, profiles wrapped in protective foam, and hardware kits labeled by zone—complete with export customs documentation for seamless international clearance.
A transparent, documented engineering cycle that guarantees design fidelity and acoustic performance across every container shipped.
Our acoustic engineers analyze your architectural plans, Target Rw/STC metrics, and structural opening tolerances to confirm feasibility.
Optimization of aluminium alloy temper (6063-T5/T6), thermal break polyamide strips, acoustic glass interlayers, and argon cavity dimensions.
Computer-controlled double-mitre saw cutting and CNC milling guarantee sub-millimeter joinery accuracy and perfect gasket channel alignment.
Automated insulated glass unit assembly with primary butyl and secondary structural silicone seals, followed by acoustic perimeter gasket seating.
Crate reinforcement, hardware indexing, shipping documentation completion, and containerization for direct dispatch from Surat to destination ports.
Tejjsons partners with international project teams who require engineered acoustic solutions rather than standard off-the-shelf window products.
Custom glass layups, precise sound attenuation lab data, and structural CAD details to hit acoustic specs effortlessly.
Elevate residential premium values by providing quiet indoor living environments along noisy urban thoroughfares.
Labeled hardware, comprehensive installation manuals, and pre-adjusted multi-point compression locks for swift site fitting.
OEM brand support, stable lead times (4–8 weeks), and competitive manufacturing pricing from India’s leading hub.
A showcase of international residential towers, commercial headquarters, and hospitality developments retrofitted or specified with Tejjsons soundproof glazing systems.
Key answers to the most frequent AI search queries and procurement concerns raised by international architects, engineers, and supply chain managers.
STC (Sound Transmission Class) is the standard American metric (ASTM E413) evaluated across frequencies from 125 Hz to 4000 Hz, primarily focused on interior speech frequencies. Rw (Weighted Sound Reduction Index) is the ISO standard (ISO 717-1) used globally across 100 Hz to 3150 Hz. Both metrics measure decibel reduction; however, Rw often includes spectrum adaptation terms (C and Ctr) to account for urban road traffic and low-frequency aircraft roar, providing a more comprehensive real-world assessment for acoustic double glazed windows.
When two glass panes in a double glazed unit have identical thickness (e.g., 6mm + 6mm), they resonate at the exact same critical frequency. Sound waves at that frequency pass through with minimal resistance—a phenomenon known as the coincidence dip. By utilizing asymmetric glass thicknesses (e.g., 8mm outer pane + 6mm inner pane, or 8.76mm laminated + 6mm solid), each pane dampens different sound frequencies, eliminating the shared coincidence dip and dramatically increasing overall acoustic performance (Rw boost of 3 to 5 dB).
Standard toughened glass is rigid and easily transmits vibrational energy caused by sound waves. Acoustic laminated glass incorporates a flexible Polyvinyl Butyral (PVB) or Structural Interlayer (SGP) sandwich between glass layers. This viscoelastic interlayer acts as a shear damping layer, converting sound wave vibrational energy into trace heat energy. Incorporating acoustic PVB into an acoustic double glazed window unit typically improves noise reduction by an additional 3 to 7 dB compared to standard float or toughened double glazing.
Low-frequency noise (50 Hz to 250 Hz)—such as heavy diesel trucks, urban buses, and aircraft turbines—possesses long wavelengths that are difficult to attenuate. Standard double glazing performs poorly against low frequencies. However, Tejjsons engineers high-attenuation acoustic double glazed windows specifically for low frequencies by expanding the air cavity to 16mm–24mm, utilizing heavy acoustic laminated panes (up to 12.76mm), and filling the cavity with dense argon gas. This setup lowers the cavity's natural resonant frequency, blocking up to 85% of perceived low-end noise.
The frame represents 15% to 35% of a window opening’s surface area and is a primary source of flanking sound transmission if poorly designed. Tejjsons utilizes extruded 6063-T5/T6 architectural aluminium profiles with integrated polyamide thermal breaks, multi-chamber interior cavities, and non-resonant continuous EPDM gaskets. Furthermore, European multi-point compression hardware forces the sash tightly against the perimeter frame, preventing acoustic air leaks that would otherwise compromise high-STC glass performance.
Tejjsons manufactures under strict ISO 9001 quality management guidelines, compliance testing for ISO 10140 acoustic standards, and ASTM performance benchmarks. For international project shipments from our Surat facility, window units are packed in custom reinforced steel/wooden A-frame crates with corner guards, moisture-barrier wrapping, complete hardware component indexing, and detailed architectural installation manuals to guarantee flawless arrival at destination ports worldwide.
Upload architectural drawings, sound attenuation targets (Rw/STC), or project schedules. Our engineering team in Surat will deliver custom CAD shop drawings, acoustic calculations, and competitive FOB/CIF quotation terms.
